PD9200 Flow Computer

• MID approved volume measurement
• Customer database
• Ticket printer for reports
• NFC card access control
• Batch control function
• Digital output for valve or pump
• Digital output for alarm
• Interface for P-NET, Profinet and Modbus TCP
• Configurable report printout
• Printout of load totals
• Temperature measurement
• 7” Colour Graphics Display with capacitive touch
• Menu based display selection
• Multi language support
• Comprehensive error detection
• Built-in SD-card for reports
• Battery back-up

APPLICATION

The PD9200 Flow Computer is designed to measure the volume received or delivered during a Custody transfer.

The transaction is logged with ID, date, time, volume etc.

The software has the necessary MID approval for a MID system.
The system is very suitable for mobile applications.

SYSTEM DESCRIPTION

The PD688 is used as operator interface and controller of the MID measuring system.

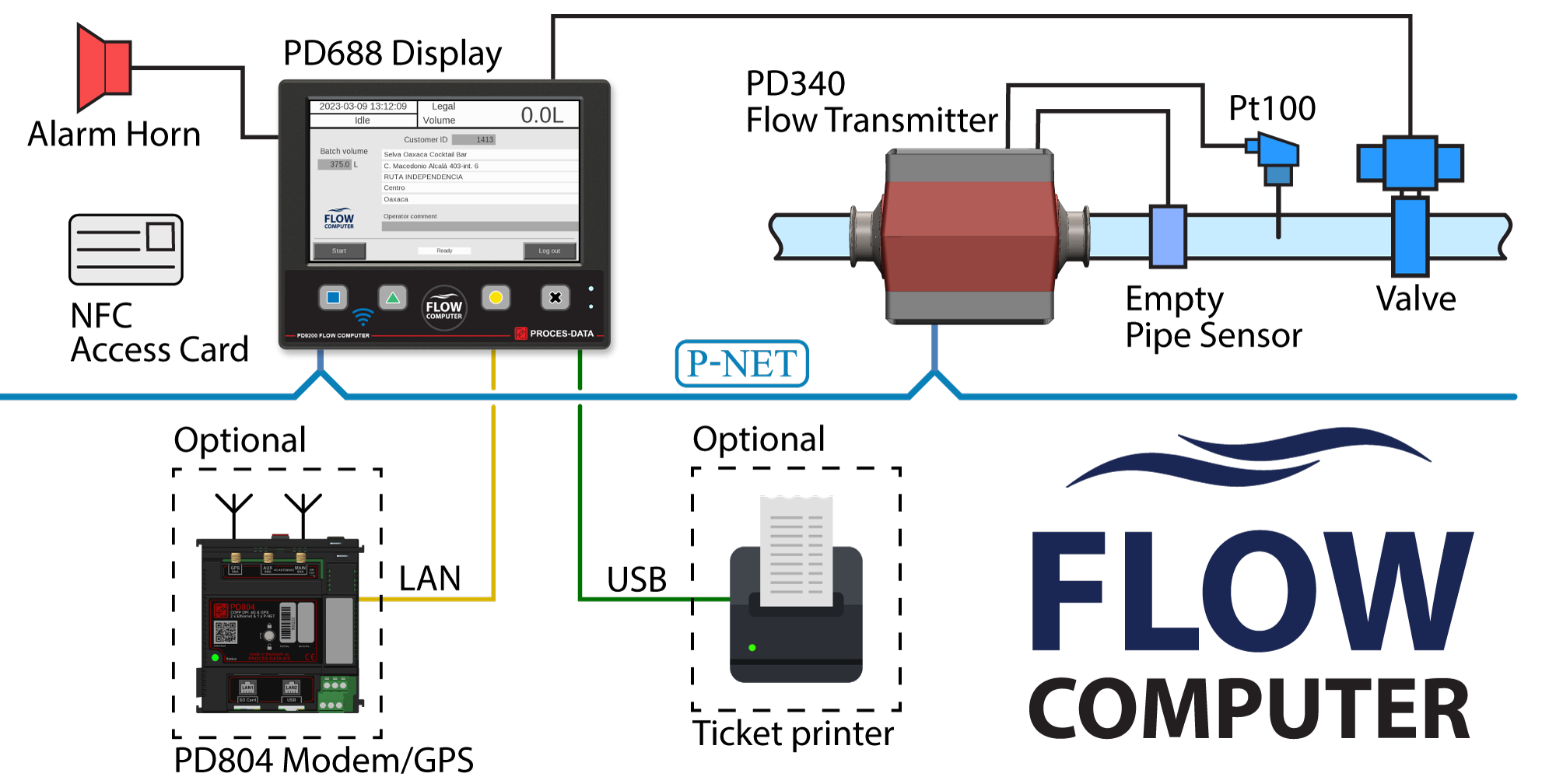

A system is built with PD688 containing approved MID software and it is connected to a PD340 flow transmitter via P-NET, see Figure 1: System overview.

The system may be used without a MID license and thereby operate without an approval. In this case, the optional display unit, PD210 may be installed. PD210 is not allowed in a MID approved system.
